LLDPE Stretch Film Extrusion Making Machine

DATA:2022/8/22 Publisher: Oujie Machinery



Descriptions:

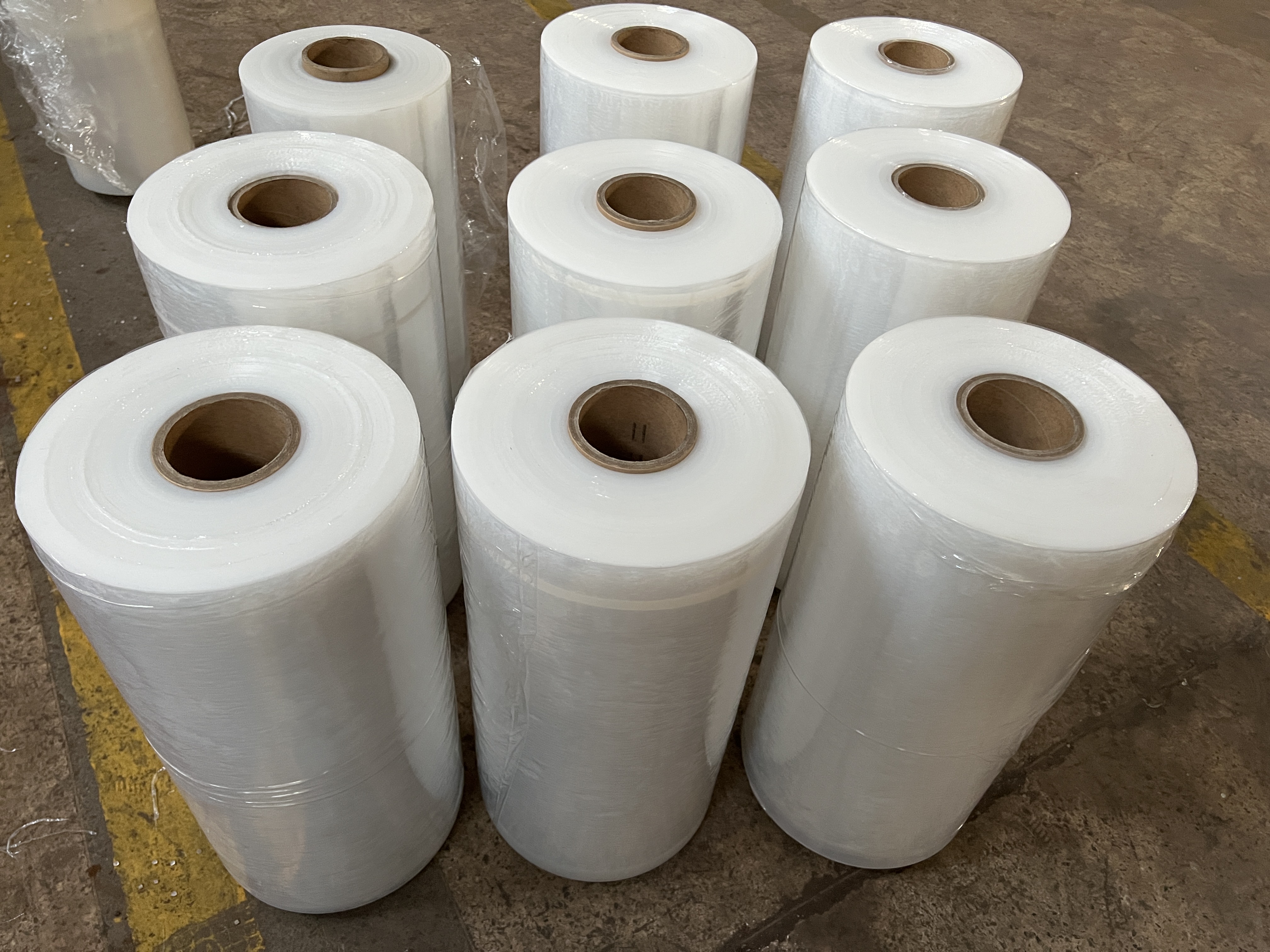

This machine uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film. The film has good tensile strength, anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical. The film can be widely used in wrapping of palletized goods. It’s a good substitute for hot shrinking packaging film during transportation.



Specifications:

Model

OJSF 1000(single screw/layer)

OJSF 1000(double screws/layers)

Screw Diameter

65mm

55mm/80mm

Screw Ratio

30:1

30:1

Film width

1000mm(500mm*2)

1000mm(500mm*2)

Die head width

1250mm

1300mm

Film thickness

0.015-0.04mm

0.015-0.05mm

Productivity

100kg/h

150kg/h

Power of Main motor

22kw

18.5kw/45kw

Total power of machine

50kw

130kw

Dimension after installation

7500*2200*2500mm

1000*5000*4000mm

Weight of machine

4000kgs

9000kgs

Voltage of machine

380V,50Hz,3-ph,4 lines



Applications:
