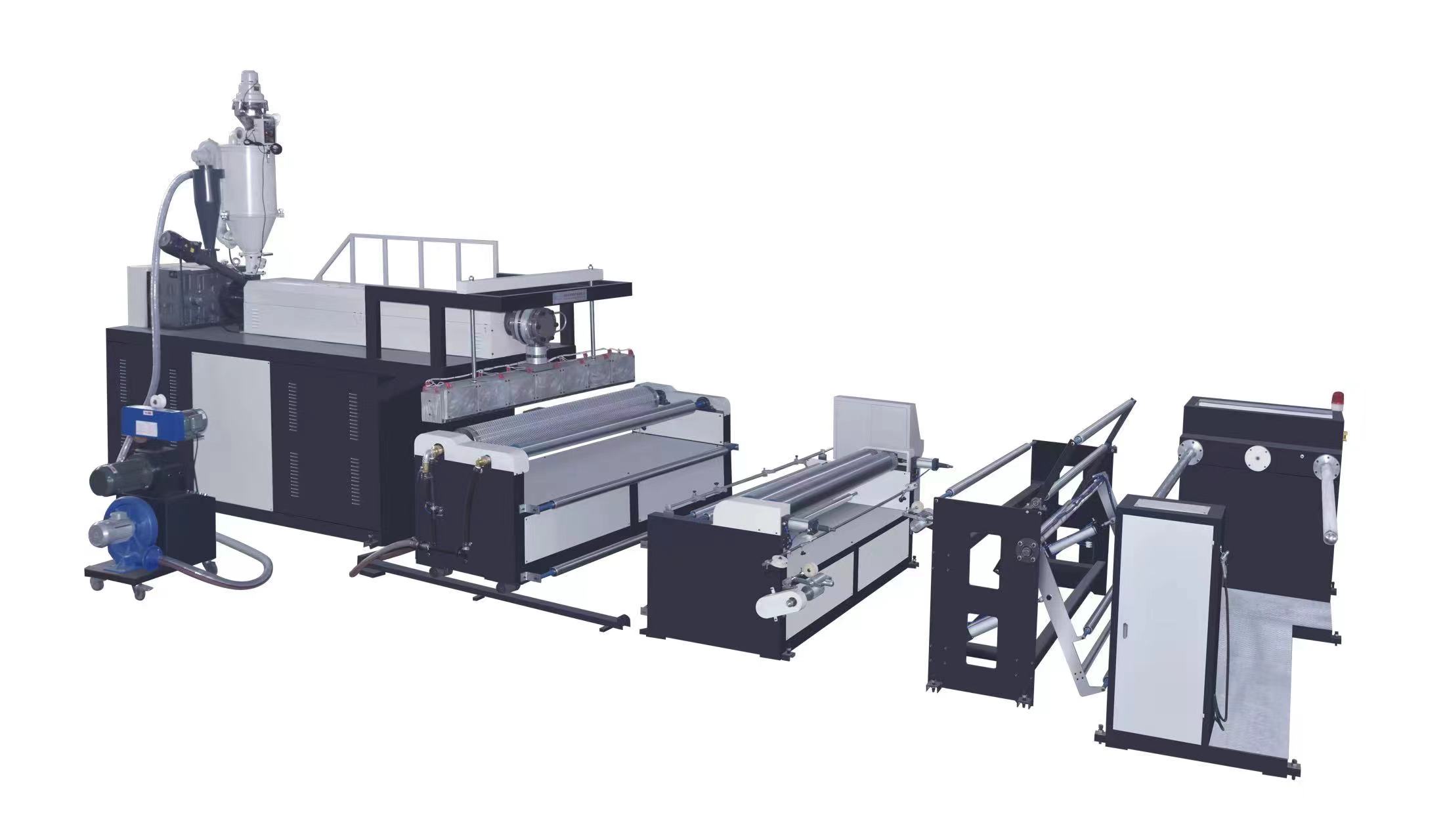

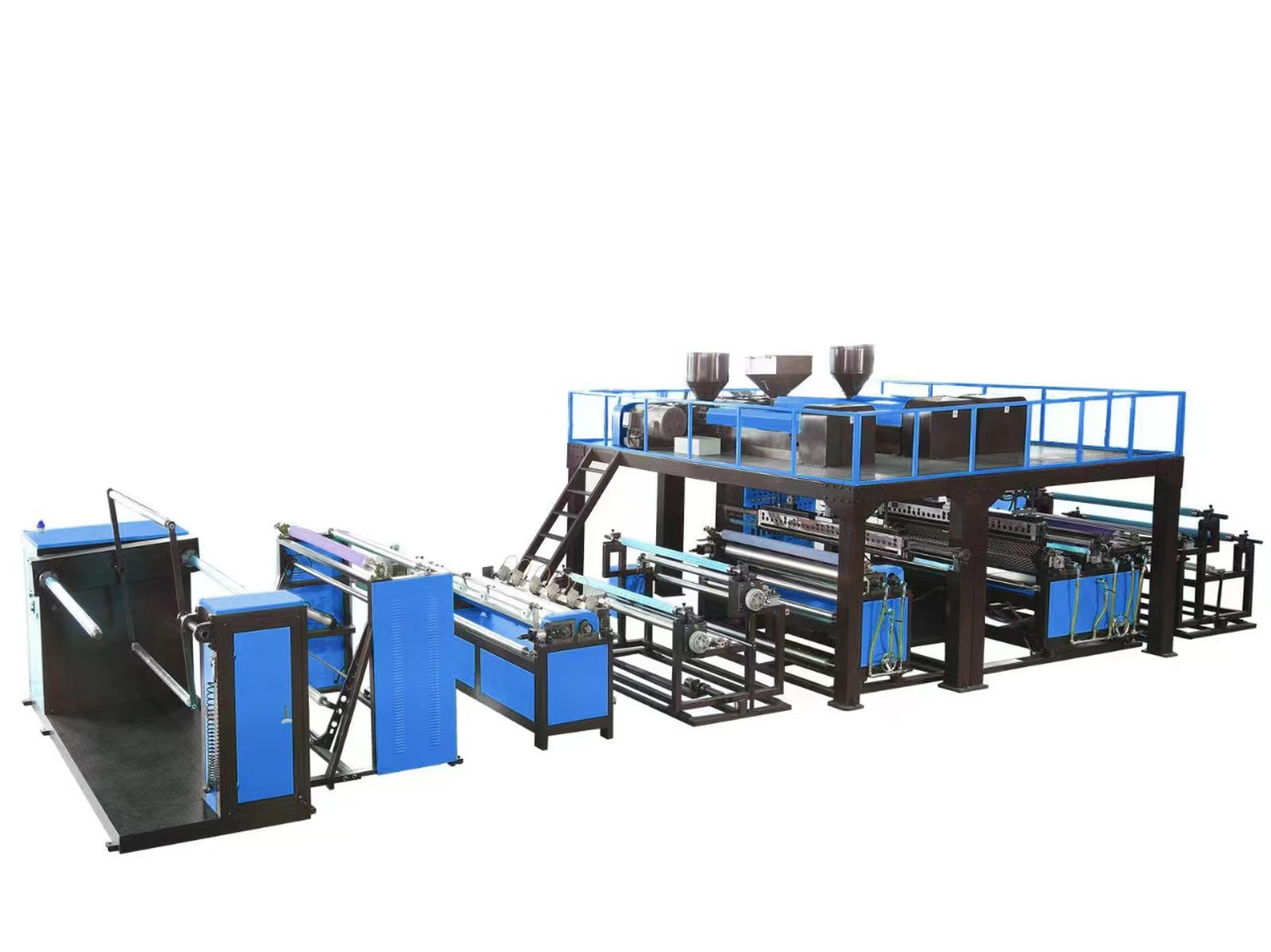

Air Bubble Film Extrusion Machine

DATA：2022/8/22 Publisher: Oujie Machinery

Descriptions:

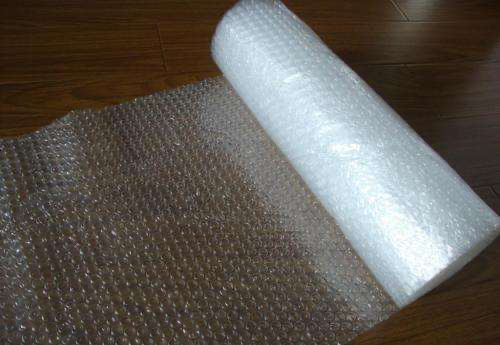

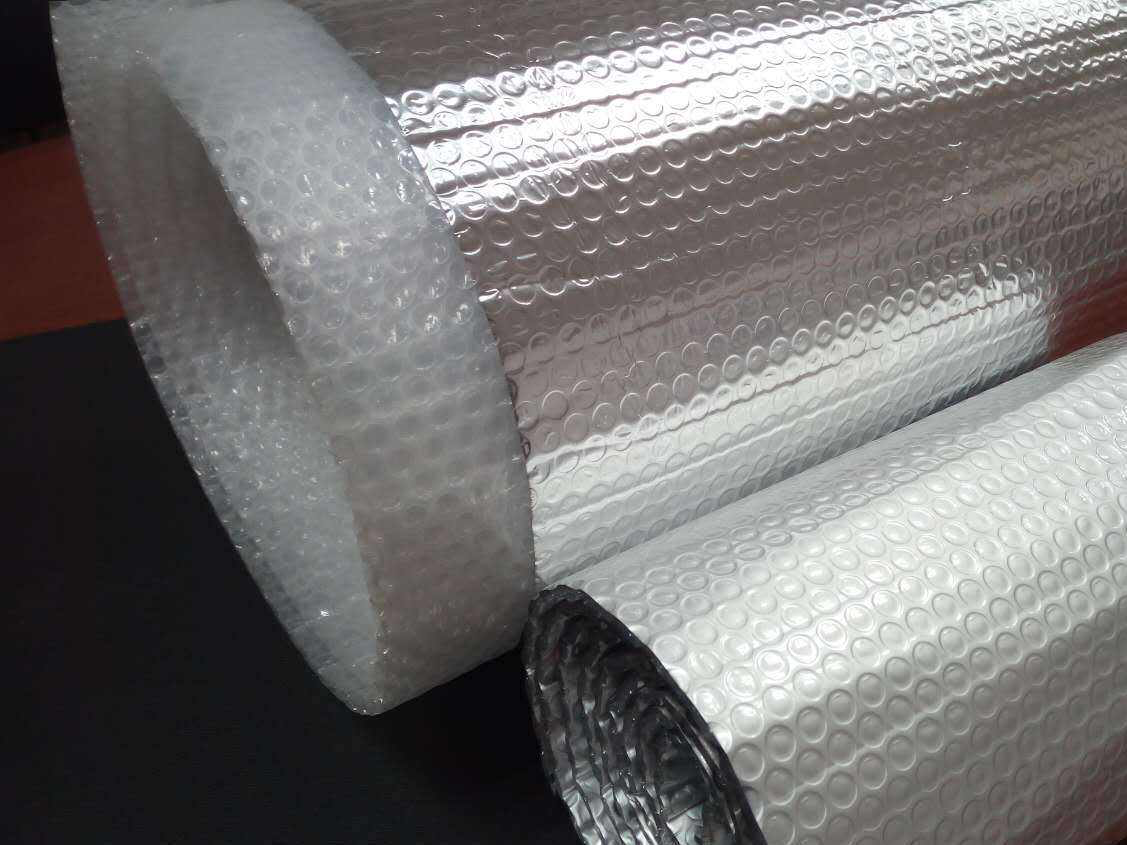

This machine adopts one-through shaping technique, which is used to produce air bubble film rolls from polyethylene, there are two kinds of air bubble film: ordinary polyethylene air bubble film and composite polyethylene air bubble film, because air bubble film not only has very good cushioning effect, shock resistance and heat sealing performance, but also has such advantages as good corrosion resistance and transparency, etc. So it is widely used in packaging like household wares, express parcel, glass products, etc.

Specifications:

Model	OJBF 1000	OJBF 1200	OJBF 1500	OJBF 2000
Screw Diameter	60mm	65mm	75mm	90mm
Screw Ratio	30:1	30:1	30:1	30:1
Film width	1000mm	1200mm	1500mm	2000mm
Productivity	50kg/h	65kg/h	80kg/h	100kg/h
Power of Main motor	15kw	18.5kw	22kw	37kw
Total power of machine	48kw	55kw	70kw	105kw
Dimension after installation	900035002500mm	950038002500mm	1000042002500mm	1150048002500mm
Weight of machine	4000kgs	4300kgs	4600kgs	7000kgs
Voltage of machine	380V, 50Hz, 3-ph, 4 lines
