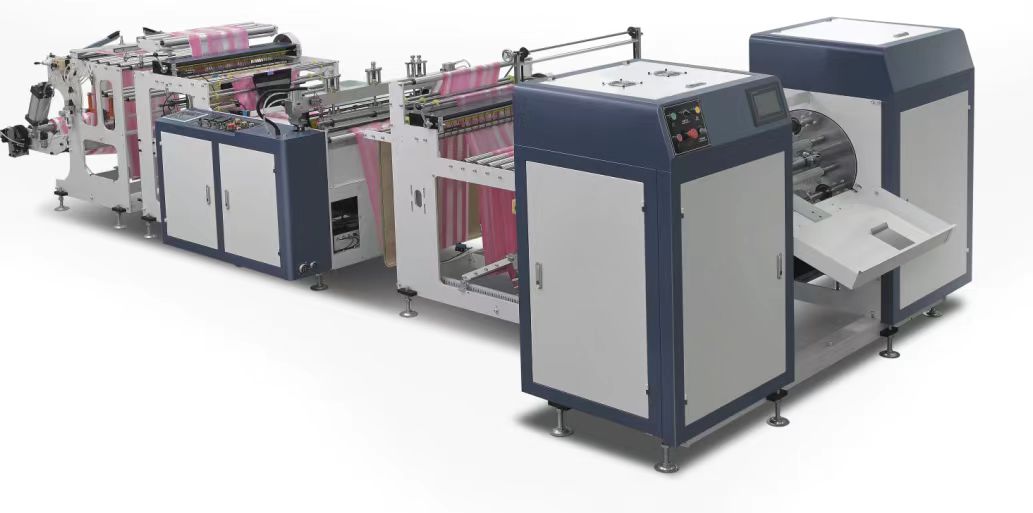

OJ automatic coreless table cover making machine

1. Main Parameters:

A: Model: OJ 800

B: Material: PE film rolls

C: Width of bag making: 100-600mm

D: Length of bag making: 300-1200mm

E: Thickness of bag making: 0.006-0.05mm(sing layer)

F: Speed of bag making: 100-250pcs/min (speed depends on the length of bag)

G: Machine dimension: 6800×1600×1900m

H: Machine weight: 1500kg

2. Unwind Unit: pneumatic unwinding system

Independent unwind system

A: Max length of roller:

800mm

B: Max effective length of roller:

600mm

C: Dia of roller: R32;

76mm

D: Type of unwind:

pneumatic

E: Unwind shaft:

Air shafts

3. Feeder device:

A: feeder motor: 1pcs

550w AC motor with inverters

It is used to feed the plastic film by working with sensor.

B: electronic sensor: 1pcs

Panasonic Optoelectronics

C: photocell: 1pcs of Panasonic

It is used for printed bag, it will stop on the same position of printed logo. Which makes the length of bag more precise.

4. Perforating device:

A: Type of cutting:

Perforate cutting

B: servo motor: 1pcs of 3kw servo motor

Pull the material, same step with feeder motor

C: Static eliminator: 1pcs

To eliminate static electricity from plastic film

D: main motor:

1.5kw with inverter control

5.Traction part:

A: traction motors:

1 sets of 550w AC motors

B: motor control:

1 sets of 750w inverters

C: special configuration:

1 sets of EPC devices

6. Automatic coreless roll changing: 1pcs

It can change the bag roll automatically, when it is exactly the quantity of each roll you set on computer. Saving time and more efficiency.

A: winding control:

1 sets of touch screen PLC

B: winding motors:

2 sets of 550w AC motors

C: motor control:

2 sets of 750w inverters

D: turntable control:

1 sets of servo motors, independent counting
